API6A Gate Valve Fly to Russia

24 May 2022

API 6A gate valve is most important equipment in oil gas industry and it is widely used for oil gas drilling, production, cementing, well testing, fracturing etc. Typical installation include wellhead Christmas tree, choke manifold, kill manifold, wellhead pipeline, sand filter, sand catcher etc.

Our api 6a gate valve are designed according to API6a standard, and absorb the technology of Cameron Schlumberger,FMC Technip,GE,NOV,SPM,etc .

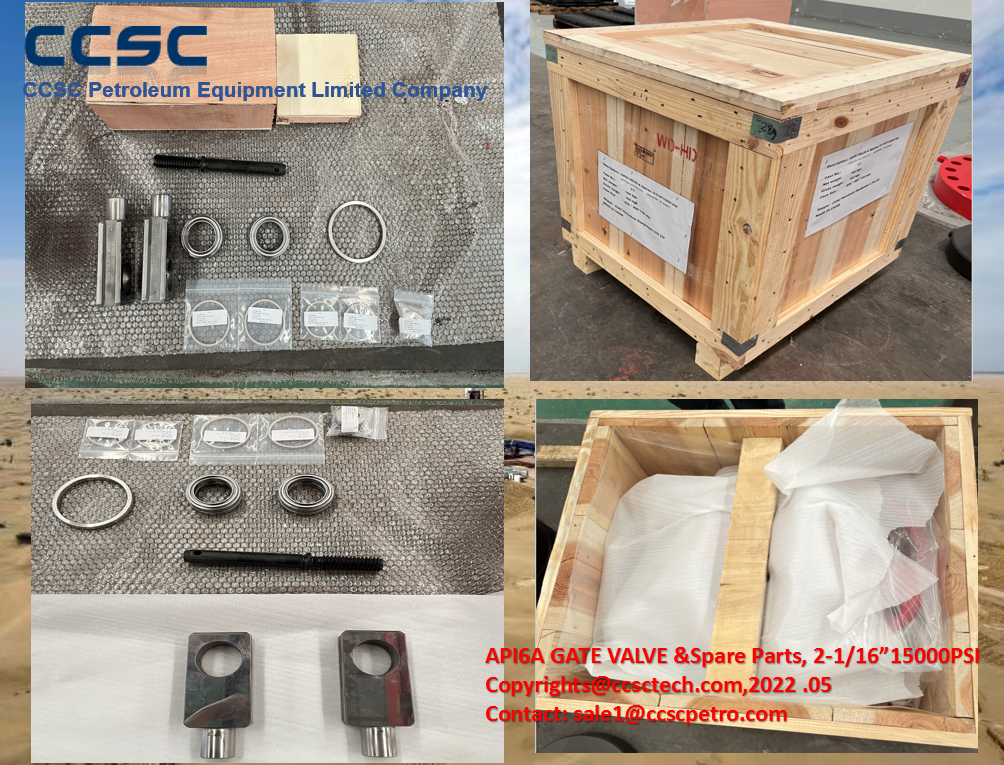

Recently we have just completed a batch of api 6a gate valve and spare parts for our customers in Russia. The model size is 2-1/16”15000PSI BX152.api 6a DD PU PSL3 PR2, the body material is used by integral forging AISI 4130 material, the seat seal and stem seal we use a kind of energy storage ring which is made by USA. Typical advantages include gate to seat and seat to body is metal to metal sealing, minimum numbers of parts, one-piece seat and slab gate, modified acme gate to stem thread allows gate to move back and forth, or float, to seal against the seat. The gate and seat assembly seals in both direction, and the gate and seats can be reserved for increased life. The stem shoulder can be back seated against the bonnet to isolate the stuffing box, which allows field-replacement of the stem packing while the valve is under pressure, the non-rising stem prevent a cavity pressure increase or displacement of cavity lubricant.

We are very good at api6a gate valve, our products have been sold to major oil companies and service companies all over the world, such as BP, Shell, Halliburton, Schlumberger, Weatherford, CNPC, CNOOC, Sinopec, GE, etc.

We have many specifications and models available as optional, all products can also be customized according to customer requirements.

Our CCSC technology team is full of enthusiasm and looks forward to your inquiry.



All Rights Reserved, Copyrights@ccscpetro.2022.05     Email: sale1@ccscpetro.com       clark@ccscpetro.com



Poster:    Clark Guo, CCSC Petroleum Equipment Limited Company, Shanghai, China, 2022.05

             Wechat & WhatsApp:  +86 13764749879         Email:  clark@ccscpetro.com
