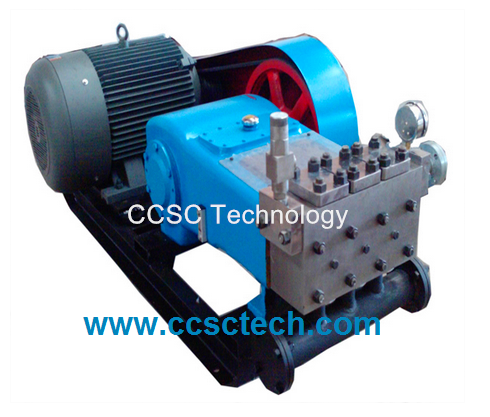

Water injection plunger pump

Water injection pump-coal seam water injection pump is a kind of reciprocating pumpsreciprocating plunger pumpwith three plunger or five plunger, both triplex plunger pump and quintuple pump are available, it is driven by electric motor or diesel engine.

Water injection pump can be used for water injection in oilfield or mine field.

Coal seam water injection pump is a special equipment with its own advantage such as high efficiency, Small volume, Light-weight and moved easily.

Coal seam after water injection operation can release the gas then insure the safety of production. Water injection also keep the coal body wet, avoid the dust flying all around, so it can improve the working condition and improve the efficiency of coal mining.

Oilfield water injection pump inject the high pressure water into the oil reservoir underground then increase and maintain and supplement the pressure of the oil reservoir.

The production of an oil field after its development, with the time passing by, the energy of the oil reservoir has been consuming the oil reservoir pressure decline continuously. Because of the increasing viscosity of the oil, the oil production will be decreased greatly. When this happened, in order to achieve high and stable oil production, we must inject water into the oil reservoir.



Technical parameters

Fluid media: Hot water, cold water, high-temperature water, High temperature chemicals

move mode: Skid mounted, fixed type, mobile type

jet pressure:2-80 Mpa

theoretical flow rate:10-2600 L/Min (0.6-160 m³/h)

Driving mode: Electric Motor, diesel engine

customizable according user’s requirements



high pressure, low vibration low noise

steady flow and pressure

flexible control, easy operation

high security, fast and efficient

high efficiency ,small volume
