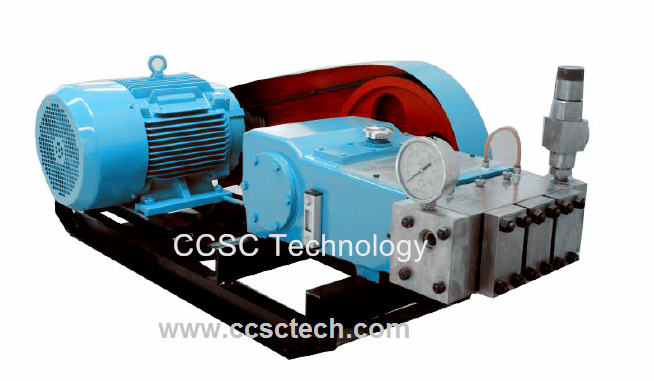

CO2 carbon dioxide supercritical extraction pump

Carbon dioxide (CO2) supercritical extraction pump-supercritical carbon dioxide extraction pump is a kind of reciprocating pumpsreciprocating plunger pumpwith three plunger or five plunger, both triplex pump and quintuple pump/quinary plunger pumps are available

It is usually driven by electric motor or diesel engine. It is especially designed for pumping the carbon dioxide (CO2) which is in the supercritical state.

Typical applications includes supercritical extraction technology in pharmaceutical industry,medical industry, food industry etc.



Technical parameters

Fluid media: Carbon dioxide (CO2) supercritical fluid

Move mode: Skid mounted, fixed type, mobile type

Output pressure:5-100 Mpa

Inlet pressure:4-8 Mpa

Theoretical flow rate:11-943 L/Min (0.7-56.6 m³/h)

Driving mode: Electric Motor, diesel engine

Customizable according user’s requirements



Features

High pressure, low vibration low noise

Steady flow and pressure

Flexible control, easy operation

High security, fast and efficient

High efficiency ,small volume

Applications:

Food industry

Medical industry& pharmaceutical industry
