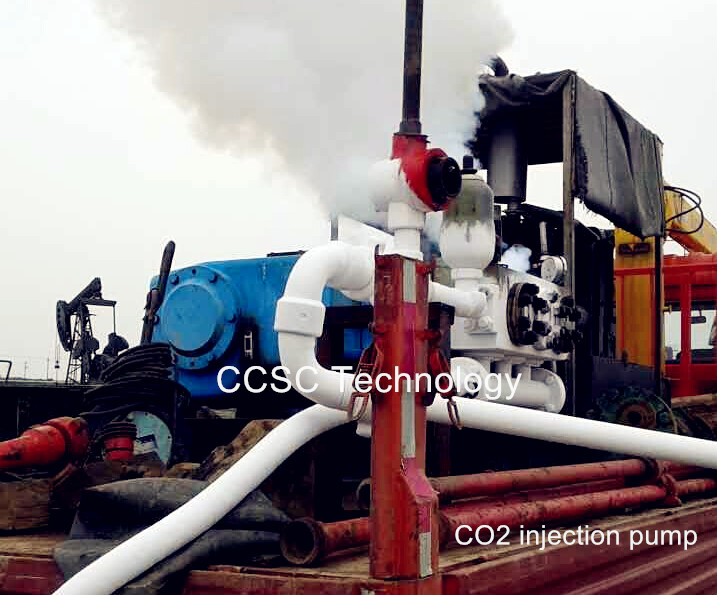

CO2 carbon dioxide injection pump

CO2 injection pump-carbon dioxide injection pump provided by CCSC Technology is a kind of reciprocating pumpsreciprocating plunger pumpwith three plunger or five plunger, also named as triplex plunger pump and quintuple pump/quinary plunger pumps.

It is usually driven by electric motor or diesel engine and especially designed for pumping the liquid CO2(liquid carbon dioxide

Typical applications includes that inject the liquid CO2 (liquid carbon dioxide) into the oil reservoir for enhancing oil recovery.



Technical parameters

Fluid media:   Liquid CO2 (liquid carbon dioxide)

move mode:   Skid mounted, fixed type, mobile type

output pressure:  8-72 Mpa / 1160-10440 PSI

inlet pressure:      1.5-4 Mpa

theoretical flow rate:    11-1415 L/Min (0.7-84.9 m³/h)

Driving mode:                Electric Motor, diesel engine

customizable according user’s requirements



Features

High pressure, low vibration low noise

Steady flow and pressure

Flexible control, easy operation

High security, fast and efficient

High efficiency ,small volume



Applications:

Liquid CO2 (liquid carbon dioxide) injection
