Flow tees-Weco union tee

Weco union tees-flow tees also known as Integral Fittings provided by CCSC are widely used when drilling ,flushing, well testing, well cementing, well fracturing, well production etc., our flow tees weco union tees are designed and manufactured in accordance with API 6A and API 16C standard and they are improved from SPM,FMC series Integral Fittings.

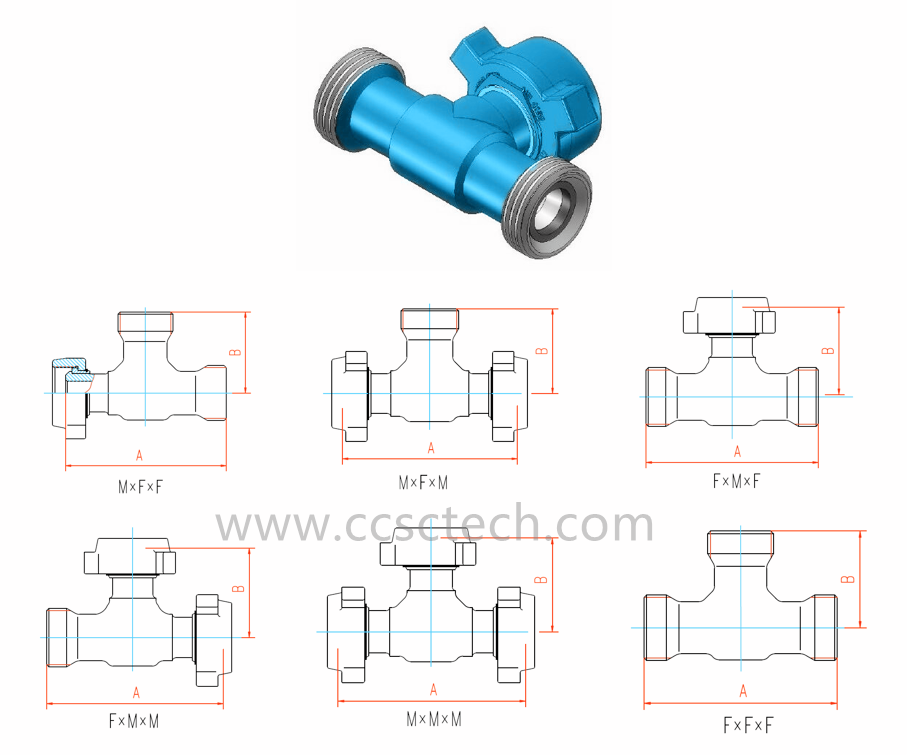

We offer many kinds of structure integral fittings tees with Weco wing union end connections as below.

Technical Specification

Tees

Connection: FIG 602, FIG 1002, FIG 1502, FIG 2202     Size: 2” 3” 4”Inch

Connection: FIG 602, FIG 1002, FIG 1502, FIG 2202

Pressure: 21Mpa-140Mpa (3000PSI-20000PSI)

SIZE: 2” 3” 4”Inch



Application:

● Oil and Gas lines                                                 ● High-pressure well servicing lines

●Acidizing& fracturing lines, well testing lines        ● Crude Oil and Sour Gas, Mud.

● Manifolds and Pipelines                                      ● &circulating lines, and other well service

●cementing and well stimulation applications.       ● Production and flushing lines,





Technical Parameters

●Medium: water, oil and gas accompanied with sour gas and sand

●Working Pressure: 6000-20000 PSI

●Standard and Sour Service are all available

●End connection type: Weco wing union







Note: Customer’s inquiry information shall include size, working pressure, connection type, and working condition
