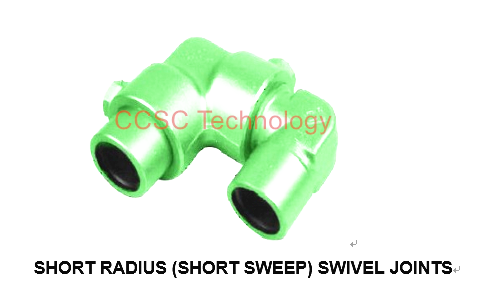

SHORT RADIUS (SHORT SWEEP) SWIVEL JOINTS

SHORT RADIUS (SHORT SWEEP) SWIVEL JOINTS are often used in the oilfield when standard and sour gas drilling, flushing, testing, cementing, fracturing, production, our SHORT RADIUS (SHORT SWEEP) SWIVEL JOINTS are designed and manufactured in accordance with API 6A and API 16C standard and they are improved from SPM&ANSON and FMC series SWIVEL JOINTS. They are easy for operation and low torque and simple to maintain.

SHORT RADIUS (SHORT SWEEP) SWIVEL JOINTS with sizing ranging from 1 - 4 inch and working pressure range from 3,000psi - 20,000psi.

   Style 10, Style 20, Style 30, Style 50, Style 60, Style 80, Style 100 long radius swivel joint and style 10, Style 20, Style 30, Style 40, Style 50, Style 60, Style 70, Style 80 short radius swivel joints are available



Specification

Model: SHORT RADIUS SWIVEL JOINTS

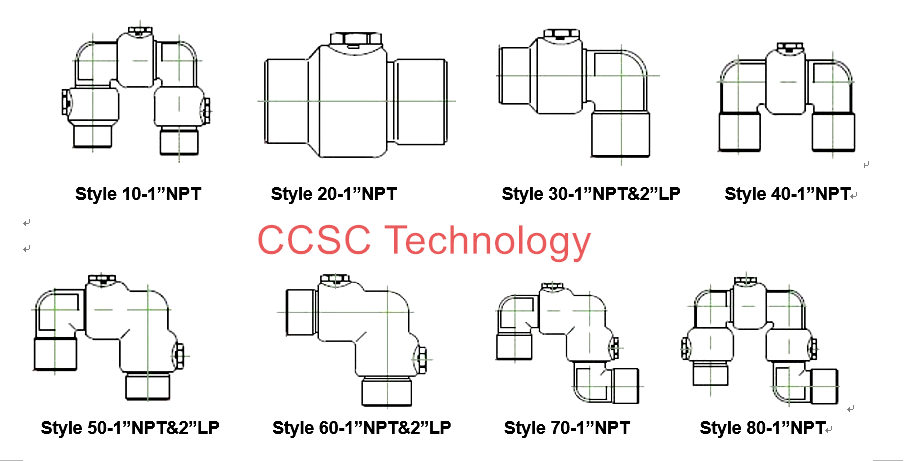

STYLES :( Style 10, Style 20, Style 30, Style 40, Style 50, Style 60, Style 70, Style 80)

CONNECTION: 1”NPT&2”LP FEMALE    SIZE: 1” 2” Inch   PRESSURE: 25Mpa-70Mpa



Application:

♦ Oil and Gas lines                                              ♦ High-pressure well servicing lines

♦ Acidizing& fracturing lines, testing lines            ♦ Crude Oil and Sour Gas, Mud.

♦ Manifolds and Pipelines                                     ♦ &circulating lines, and other well service

♦ cementing and cand stimulation applications.    ♦ Production and flushing lines,



Technical Parameter

Medium:                     water, oil and gas accompanied with sour gas or / and sand

Working Pressure:     2000-20000 PSI

working condition:    Standard and Sour Service are all available

End connection type:   weco wing union, threaded



Note: Customer’s inquiry information shall include size style, working pressure, connection type, and working condition
