Integral Fittings-Hammer union wye

Hammer Union WYES also known as Integral Fittings provided by CCSC technology are widely used when drilling ,flushing, well testing, well cementing, well fracturing, well production etc., our union wyes are designed and manufactured in accordance with API 6A and API 16C standard and they are improved from SPM,FMC series Integral Fittings.

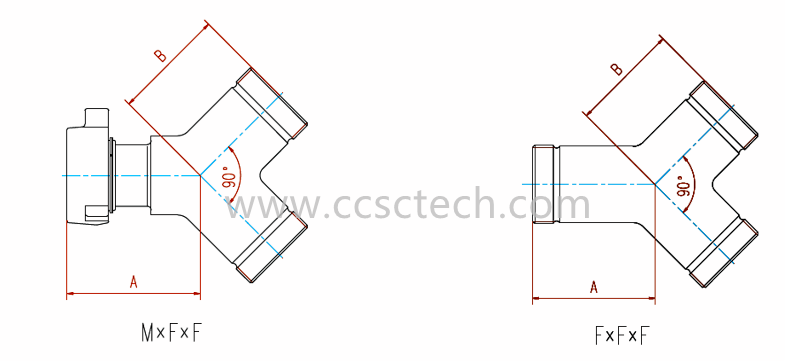

Technical Specification

:WYES

Connection: FIG 602, FIG 1002, FIG 1502, FIG 2202     Size: 2” 3” 4”Inch

Pressure: 42Mpa-140Mpa (6000PSI-20000PSI)





Application:

● Oil and Gas lines                                                   ● High-pressure well servicing lines

●Acidizing& fracturing lines, well testing lines           ● Crude Oil and Sour Gas, Mud.

● Manifolds and Pipelines                                          ● &circulating lines, and other well service

●cementing and well stimulation applications.            ● Production and flushing lines,



Technical Parameters

Medium: water, oil and gas accompanied with sour gas and sand

Working Pressure: 6000-20000 PSI

Standard service, Sour Service

End connection type: Weco wing union, threaded





Note: Customer’s inquiry information shall include size, working pressure, connection type, and working condition
