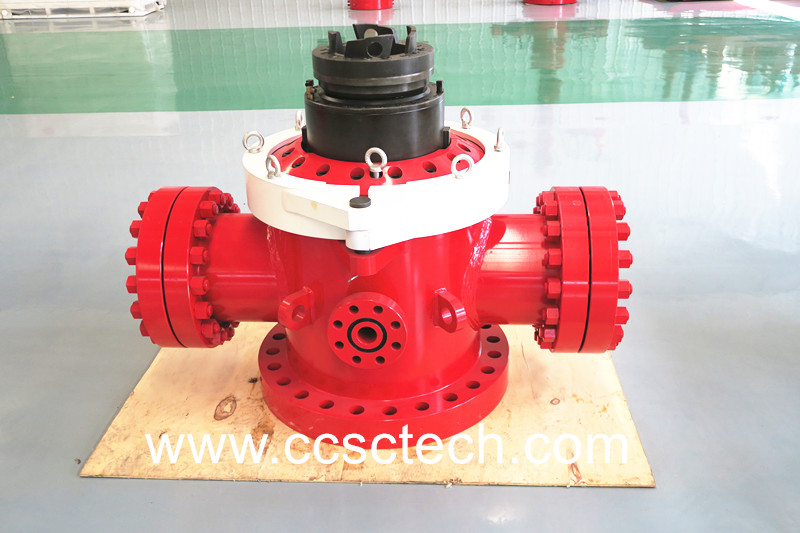

Single Rubber Rotating Control Device (RCD)

Single rubber Rotating Control Device (RCD) is the RCD which is designed with one seal rubber sealing for added safety and performance.

Single sealing elements can be easily and quickly changed so as to saving time.

Rotating assembly can be installed or removed with an integral piece so as to improve work efficiency.

CCSC single rubber Rotating Control Device (single rubber RCD) is designed and manufactured in accordance with API 16-RCD.it is manufactured and improved from Weatherford safeshield, Williams, Schlumberger MI-SWACO,SHAFFER, HALLIBURTON etc.



Structure Features:

●Single rubber RCD Reliable sealing, long service life

●Single rubber RCD Easy and fast to replace the sealing element and rotating assembly

●Single rubber RCD Simple structure, compact design, easy maintenance

●Single rubber RCD Rotating assembly can be removed as one piece so as to improve work efficiency



Application:

Managed pressure drilling (MPD), air drilling

Pressurized mud-cap drilling (PMCD)

Constant bottom hole pressure (CBHP)

Returns flow control (RFC)

Underbalanced drilling (UBD)

Drilling in formations with abnormally pressured aquifers

Extended-reach horizontal wells and deep vertical wells that require large-diameter drill strings

Drilling operations that require prevention of background gas from flashing to the atmosphere on the rig floor

Offshore drilling operations that present the risk of two-phase flow

Drilling in shallow-gas formations





Disclaimers:

CCSC Technology is not an authorized agent or sales representative of Weatherford and Schlumberger, Halliburton.
