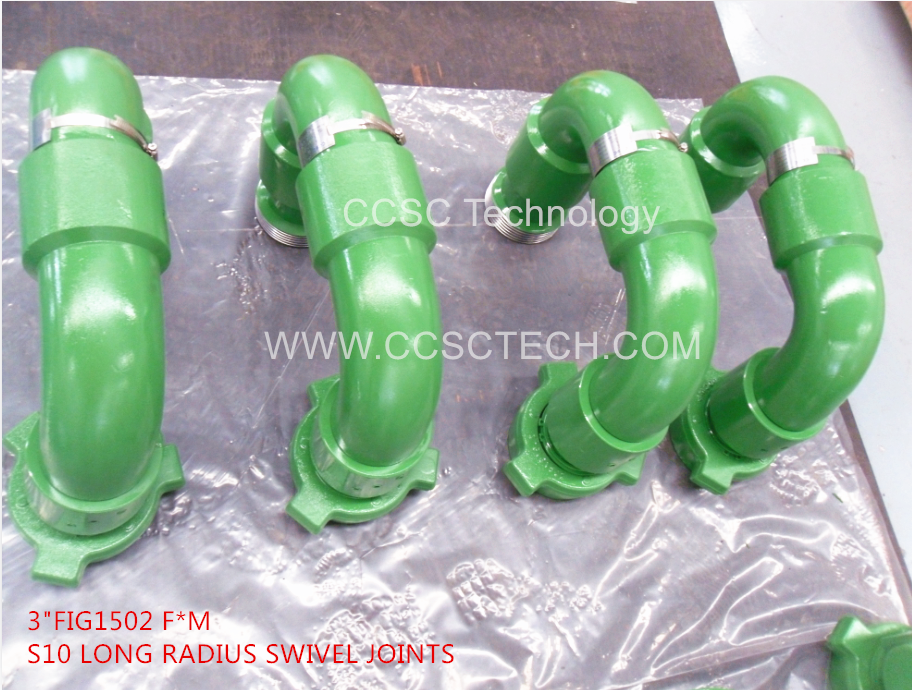

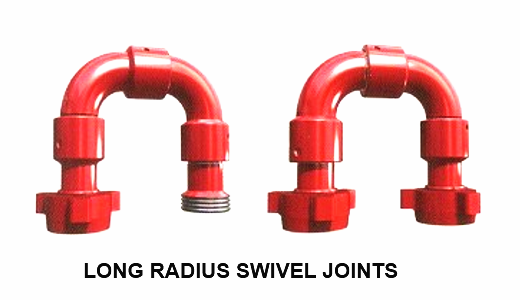

LONG RADIUS (LONG SWEEP)SWIVEL JOINTS

LONG RADIUS (LONG SWEEP)SWIVEL JOINTS are often used in the oilfield when standard and sour gas drilling, flushing, testing, cementing, fracturing, production, our LONG RADIUS (LONG SWEEP)SWIVEL JOINTS are designed and manufactured in accordance with API 6A and API 16C standard and they are improved from SPM&ANSON and FMC series SWIVEL JOINTS. They are easy for operation and low torque and simple to maintain.

Our LONG RADIUS (LONG SWEEP)SWIVEL JOINTS S with sizing ranging from 1 - 4 inch and working pressure range from 3,000psi - 20,000psi.

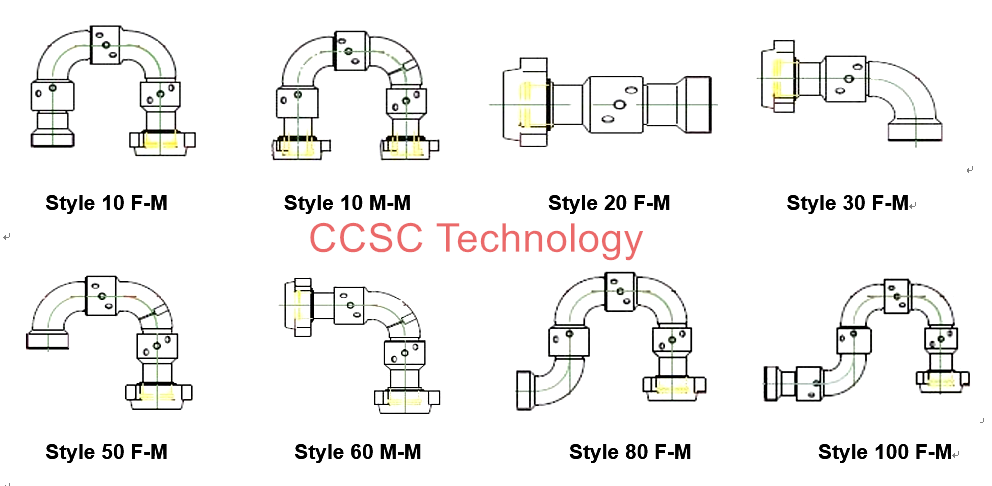

 Style 10, Style 20, Style 30, Style 50, Style 60, Style 80, Style 100 long radius swivel joint and style 10, Style 20, Style 30, Style 40, Style 50, Style 60, Style 70, Style 80 short radius swivel joints are available



Specification

LONG RADIUS SWIVEL JOINTS

STYLES: (Style 10, Style 20, Style 30, Style 40,Style 50, Style 60, Style 80Style 100)



CONNECTION: FIG 602, FIG 1002, FIG 1502, FIG 2202              SIZE: 2” 3” 4” Inch



Application:

♦ Oil and Gas lines                           ♦ High-pressure well servicing lines

♦ Acidizing& fracturing lines, testing lines        ♦ Crude Oil and Sour Gas, Mud.

♦ Manifolds and Pipelines                       ♦ circulating lines, and other well service

♦ cementing and cand stimulation applications.          ♦ Production and flushing lines





Technical Parameters

Medium:        water, oil and gas accompanied with sour gas and sand

Working Pressure:   2000,3000PSI,5000PSI,6000PSI,10000PSI,15000PSI,20000 PSI

working condition:   Standard service, Sour gas Service

End connection type:  Hammer wing union, threaded



Note: Customer’s inquiry information shall include size and style, working pressure, connection type, and working condition
